CCTV Pipe Inspection Robot
GENERAL TECHNICAL SPECIFICATIONS

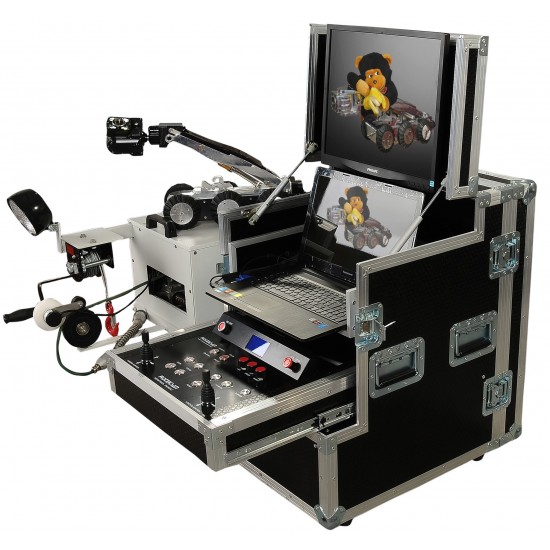

CONTROL PANEL
- Robot Motion Control with Two Joysticks
- Tractor Robot Motion Control
- Seamless 360 Degree Rotation Around Camera Head Axis
- Rotate the Camera Head 240 Degrees Right-Left
- LCD Monitor
- Control Panel Illuminated Control Buttons
- Camera Menu Buttons
- Robot Elevator Unit Control Buttons
- Front and Back Camera Access Control
- Graphic LCD display
- robot speedometer

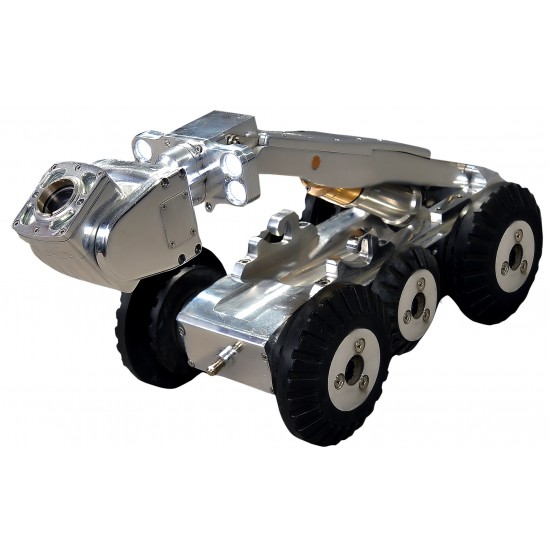

TRACTOR ROBOT
- Working Pipe diameters DN200mm-DN1600mm
- Robots 6×6 Six Wheel Drive
- Motors and Reducer Faulhaber or Maxon
- 60 Watt Power Per Motor
- Elevator Camera Lifting Height 0-30cm.
- Elevator Unit Automatically Controlled
- Climbing Slope 60 Degrees
- Operating Temperature -10 / +50 Degrees
- Robot Speed 15-30 meters/minute
- Forward-Backward Movements, Right-Left Turn
- Specially Designed Felt for Sealing
- Nitrogen Gas Inlet Valves
- 304 Quality Stainless Steel and 700 Series Aluminum
- Robot Dimension 345x290x80mm
- Practical Tail Socket for the Combination of Cable and Robot
- Small Wheels on DN200-400mm Channels,
- Medium Size Wheels on DN400-600mm Channels
- Large Size Wheels on DN800-1600mm Channels

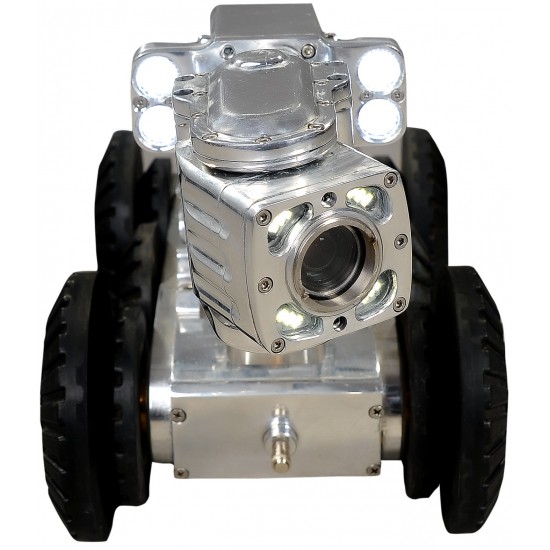

ROBOTIC CAMERA HEAD
- Robotic Front camera with Pan-Tilt feature
- It has 360 degree uninterrupted head rotation movements in all directions inside the watch.
- led illumination lights
- LED light intensity is adjusted from the control panel
- Nitrogen Gas inlet valve
- Resolution: Full HD quality
- Robot front camera 10x Optical Zoom camera min.700TVL
- Robot Returns Monitoring Camera 460 TVL
- It has a Cable Socket and LED Lighting System Integrated with the Camera.
ROBOTIC ARM
- Raises Motion Camera Between 0-30cm
- Camera stopping feature at desired height
- Sensors that prevent it from getting stuck in the pipe in case of excessive elevation
- Automatic control from control panel
- At each height position, the camera head should be positioned horizontally and straight.
- Engine Housing Made of Bronze and Stainless Steel
- Since the Center of Gravity is below the body level in all cases, the robot is tilt-controlled
REPORTING SOFTWARE PROGRAM
- Turkish and English language options
- Video, Photo recordings
- Measuring and reporting internal pipe breaks and cracks through the program
- Quantity measurement and adding to the report
- Date and time information
- Pipeline slope measurement and graphic report generation
- Preparing progress payment report
- Adding company and administration logos to the report
- Ability to display project information on a complete report
CABLE WINDING DRUM
- Kevlar reinforced min.200meter cable
- Regular and sequential cable winding mechanism
- Cable Winding Motorized
- There will be a 15 meter steel rope engine integrated into the Drum Crane.
- Automatic and Manual usage options
- With emergency stop button
- Drum Dimension 585x760x530
- Telescopic Extensible Boom and Crane
- Extension-Shortening Dimension 1050-1450mm
- Manual and Automatic Control Features
- 130 Degree Rotation Feature on Horizontal Axis
- Chimney Interior Lighting Projector
- Flashing Warning Lights
- Meter Encoder Unit
- Steel Construction and Steel Sheet Coating
